LMF-M Linear Bushing

Home>> Linear Bearings>>Linear Bearings >> LMF-M Linear Bushing

LMF-M Linear Bushing

LMF-M Linear Bushing

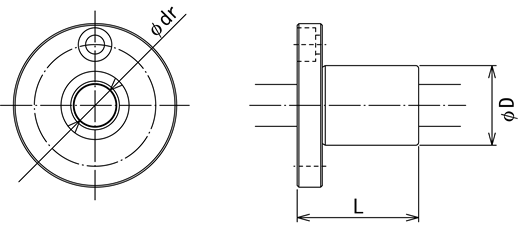

Drawing

Datasheet

Model No.				Main dimensions
	Inscribed bore diameter			Outer diameter		Length		Flange	diameter
	dr	Tolerance		D	Tolerance	L	Tolerance	D₁	Tolerance
		Precision	High		Precision/High
	mm	mm	mm	mm	mm	mm	mm	mm	mm
LMF 6M	6	—	—	12	0	19	0	28	0
					–0.011				–0.2
LMF 8SM	8	—	—	15	0	17	0	32	0
					–0.011				–0.2
LMF 8M	8	—	—	15	0	24	0	32	0
					–0.011				–0.2
LMF 10M	10	—	—	19	0	29	0	39	0
					–0.013				–0.2
LMF 12M	12	—	—	21	0	30	0	42	0
					–0.013				–0.2
LMF 13M	13	—	—	23	0	32	0	43	0
					–0.013				–0.2
LMF 16M	16	—	—	28	0	37	0	48	0
					–0.013				–0.2
LMF 20M	20	—	—	32	0	42	0	54	0
					–0.016				–0.2
LMF 25M	25	—	—	40	0	59	0	62	0
					–0.016				–0.2
LMF 30M	30	—	—	45	0 -0.016	64	0 -0.3	74	0 -0.2
